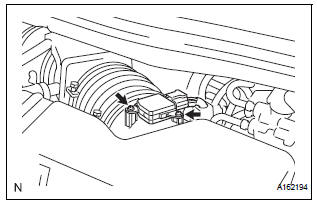

1. REMOVE MASS AIR FLOW METER
Electronic control
(a) REMOVAL AND INSTALLATION OF BATTERY TERMINAL
REMOVAL AND INSTALLATION OF BATTERY TERMINAL
NOTICE: Certain systems need to be initialized
after
disconnecting and reconnecting the cable from
the negative (-) battery terminal.
(1) Before performing electronic work, disconnect
the ...
Parking Brake Switch Circuit
DESCRIPTION
The Multiplex network body ECU receives parking brake switch signal.
WIRING DIAGRAM
INSPECTION PROCEDURE
1 READ VALUE OF INTELLIGENT TESTER
Connect the intelligent tester to DLC3.
Turn the ignition switch ON and push the intelligent
tester main switch ON.
Se ...
Check component status
(a) Compare the test value with the minimum test limit
(MIN LIMIT) and maximum test limit (MAX LIMIT).
(b) If the test value is between the minimum test limit
and maximum test limit, the component is
functioning normally. If not, the component is
malfunctioning. The test value is usually sign ...
