Toyota Sienna Service Manual: Disassembly

1. REMOVE COOLER DRYER

REMOVE COOLER DRYER

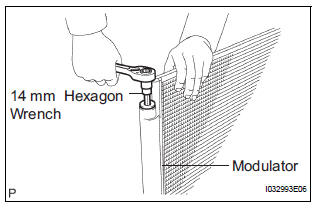

(a) Using a hexagon wrench 14 mm (0.55 in.), remove the cap from the modulator.

REMOVE COOLER DRYER

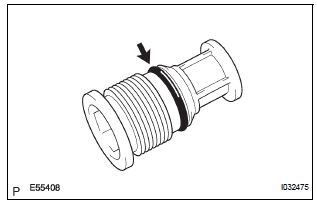

(b) Remove the O-ring from the cap.

REMOVE COOLER DRYER

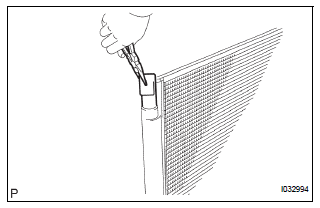

(c) Using needle nose pliers, remove the cooler dryer.

Removal
1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM (See page AC-172) 2. REMOVE NO. 2 AIR CLEANER INLET (See page EM- 28) 3. REMOVE FRONT BUMPER ASSEMBLY (See page ET-3) 4. DISCONNECT DISCHARGE HOS ...

Reassembly
1. INSTALL COOLER DRYER (a) Using needle nose pliers, install the cooler dryer. (b) Install a new O-ring on the cap. (c) Sufficiently apply compressor oil to the fitting surfaces of the ...
