Toyota Sienna Service Manual: Front door glass weatherstrip

Installation

1. INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY 2. INSTALL REAR SPOILER Install the rear spoiler with the 3 nuts and 2 clips. Connect the center stop light connector. 3. INSTALL BACK DOOR CE ...

Removal

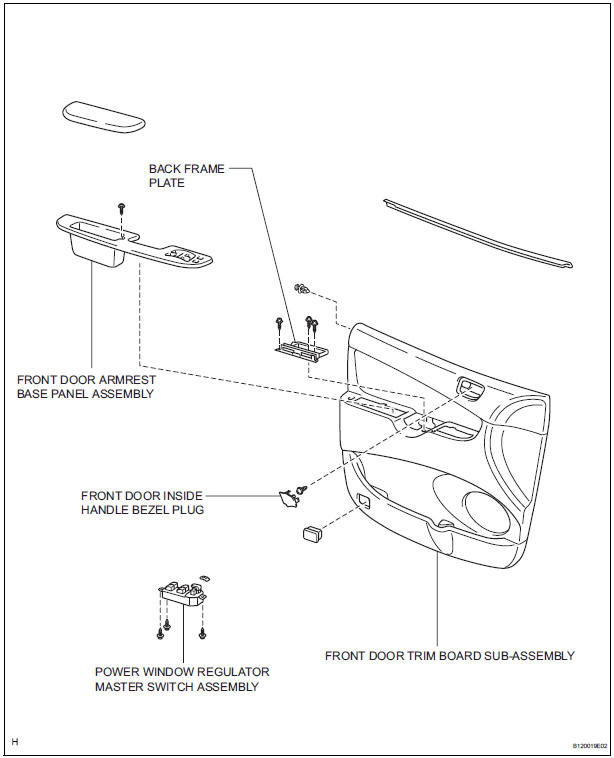

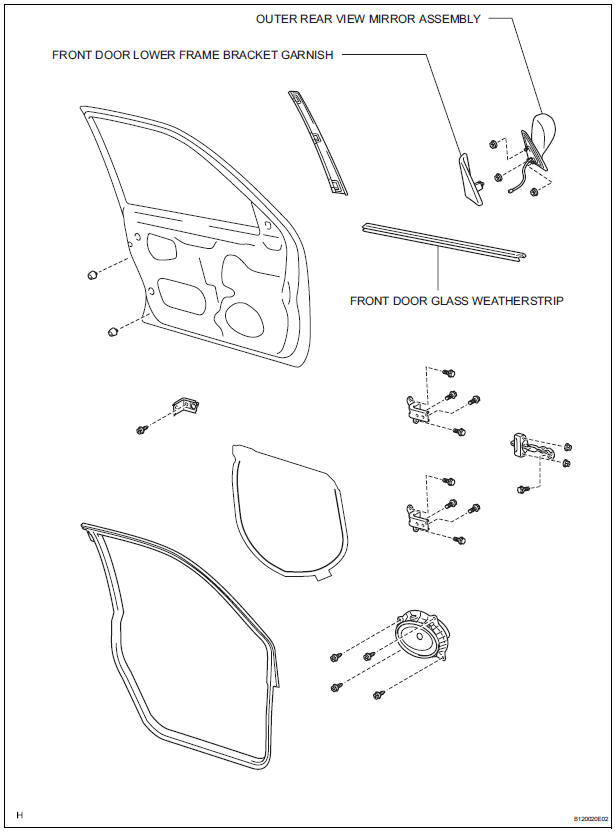

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH 2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG 3. REMOVE FRONT DOOR ARMREST BASE PANEL ASSEMBLY 4. REMOVE BACK FRAME PLATE 5. REMOVE POWER WINDOW ...

Other materials:

Installation
1. INSTALL TRANSFER EXTENSION HOUSING TYPE T OIL SEAL (a) Using SST(s), install anew transfer extension housing type T oil seal to he transfer extension housing sub-assembly at the position show in the illustration. SST 09325-20010 NOTICE: Do not install the oil seal obliquely. (b) Apply ...

Reassembly
NOTICE: Before installation, coat the parts indicated by arrows with power steering fluid (See page PS-7). 1. INSTALL VANE PUMP HOUSING OIL SEAL (a) Coat a new vane pump housing oil seal lip with power steering fluid. (b) Using SST and a press, install the vane pump housing oil seal until i ...

Inspection
1. INSPECT BRAKE DISC INSIDE DIAMETER (a) Using a brake drum gauge or equivalent, measure the inside diameter of the disc. Standard inside diameter: 190 mm (7.480 in.) Maximum inside diameter: 191 mm (7.520 in.) 2. INSPECT PARKING BRAKE SHOE LINING THICKNESS (a) Using a ruler, measur ...
