Toyota Sienna Service Manual: Front door lock
INSPECTION

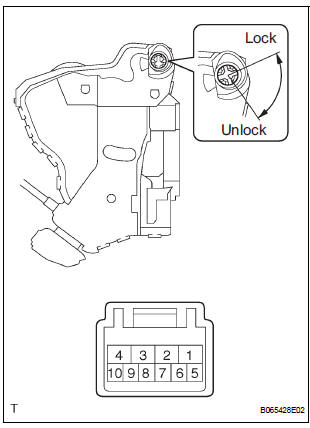

1. INSPECT FRONT DOOR W/ MOTOR LOCK ASSEMBLY LH

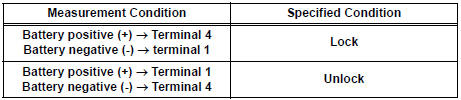

- Apply battery voltage to the door lock and check operation of the motor.
OK
HINT: If the result is not as specified, replace the door lock assembly.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
HINT: If the result is not as specified, replace the door lock assembly.

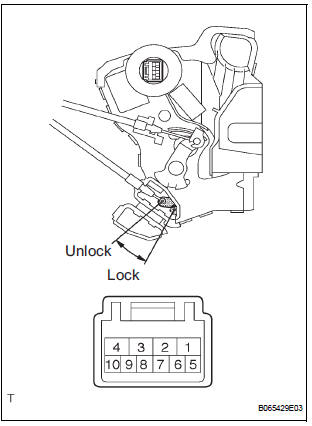

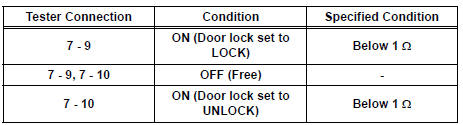

- Measure the resistance according to the value(s) in the table below.
Standard resistance
HINT: If the result is not as specified, replace the door lock assembly.

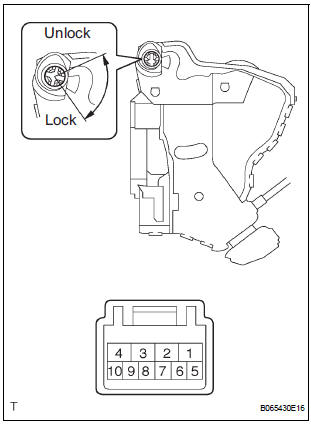

2. INSPECT FRONT DOOR LOCK W/ MOTOR ASSEMBLY RH

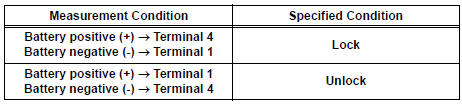

- Apply battery voltage to the door lock and check operation of the motor.
OK
HINT: If the result is not as specified, replace the door lock assembly.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
HINT: If the result is not as specified, replace the door lock assembly.

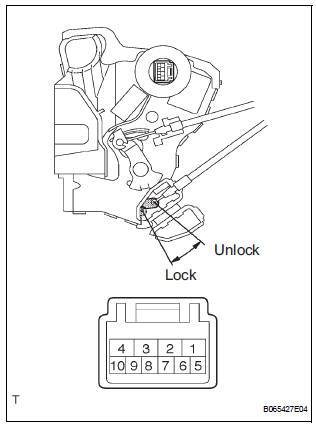

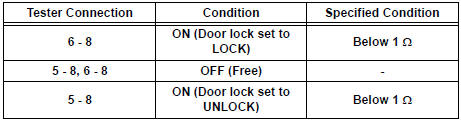

- Inspect the resistance of the door lock and unlock switch.
Standard resistance
HINT: If the result is not as specified, replace the door lock assembly
