HINT: Install the RH side by same procedure as the LH side.
1. INSTALL REAR SPEED SENSOR

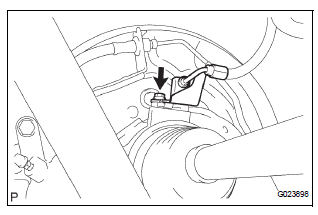

(a) Install the speed sensor rear LH with the bolt.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
NOTICE: Keep the tip of the speed sensor rear LH clean.

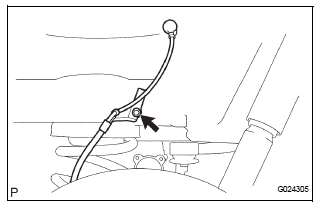

(b) Install the sensor harness clamps with the bolts to the body.

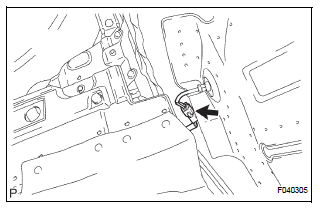

Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf) (c) Push in the sensor wire harness with grommet.
NOTICE: When grommet i set to body, pull the grommet, and don't pull the sensor wire.
(d) Connect the speed sensor connector.
2. INSTALL QUARTER TRIM PANEL ASSEMBLY LH
3. INSTALL REAR WHEEL Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
4. CHECK ABS SPEED SENSOR SIGNAL
HINT: See page BC-10.
Power Source Circuit
DESCRIPTION
This is the power source circuit for the outer mirror control ECU.
WIRING DIAGRAM
INSPECTION PROCEDURE
1 INSPECT OUTER MIRROR CONTROL ECU (POWER SOURCE)
Disconnect the O9 or O11 ECU connector.
Measure the voltage and resistance according to the
value(s) in the t ...
Data list / active test
1. DATA LIST
HINT:
Using the DATA LIST displayed on the intelligent tester,
you can read the value of the switch, sensor, actuator,
etc. without parts removal. Reading the DATA LIST as
the first step of troubleshooting is one way to shorten the
labor time.
Connect the intelligent tester to ...
Installation
1. INSTALL AIR CONDITIONING BLOWER ASSEMBLY
(a) Install the air conditioning blower assembly with the
3 bolts.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
NOTICE:
Tighten the bolts in the order shown in the
illustration to install the air conditioning blower
assembly.
2. INSTALL AIR CONDITIO ...
