1. INSTALL ACCELERATOR PEDAL ROD
NOTICE:
- Avoid physical shock to the accelerator pedal assembly.
- Do not disassemble the accelerator pedal assembly.
- Install the accelerator pedal rod with the 2 nuts.
Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)
- Connect the accelerator pedal position sensor connector.
Removal

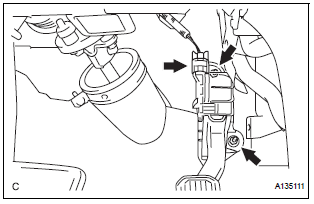

1. REMOVE ACCELERATOR PEDAL ROD
Disconnect the accelerator pedal position sensor
connector.
Remove the 2 nuts and accelerator pedal rod.
...
