Toyota Sienna Service Manual: Installation

1. INSTALL CIGARETTE LIGHTER ASSEMBLY

INSTALL CIGARETTE LIGHTER ASSEMBLY

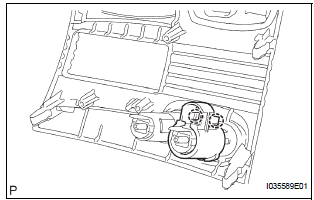

  1.  Engage the 2 claws to install the cigarette lighter assembly.
  2.  Install the cigarette lighter knob.

2. INSTALL CIGARETTE LIGHTER COVER

INSTALL CIGARETTE LIGHTER COVER

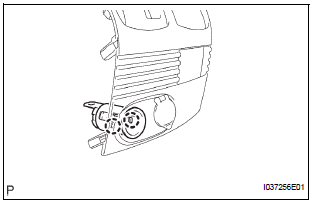

  1.  Engage the 2 claws to install the cigarette lighter cover.

3. INSTALL INSTRUMENT CLUSTER CENTER LOWER FINISH PANEL SUB-ASSEMBLY

4. INSTALL POSITION INDICATOR HOUSING ASSEMBLY

5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

6. INSTALL INSTRUMENT CLUSTER CENTER NO. 2 FINISH PANEL

7. INSTALL INSTRUMENT CLUSTER CENTER NO. 1 FINISH PANEL
