Toyota Sienna Service Manual: Installation

1. INSTALL TRANSFER CASE OIL SEAL

INSTALL TRANSFER CASE OIL SEAL

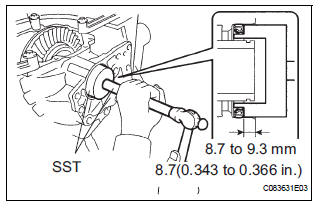

(a) Using SST, install anew transfer case oil seal to the transfer case at the position shown in the illustration.

SST 09387-00010, 09950-70010 (09951-07150)

NOTICE: Do not install it obliquely.

(b) Apply small amount of MP grease to the oil seal lip.

2. INSTALL CTR DIFFERENTIAL LOCK SLEEVE

HINT: (See page TF-22)

3. INSTALL TRANSFER ASSEMBLY

HINT: (See page TF-9)

4. INSTALL AUTOMATIC TRANSMISSION WITH TRANSFER

HINT: See page AX-167

5. INSTALL ENGINE AND TRANSAXLE

HINT: (See page EM-44)

6. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

HINT: (See page SP-4)

7. CHECK ABS SPEED SENSOR SIGNAL

HINT: (See page BC-3)
