INSPECTION PROCEDURE

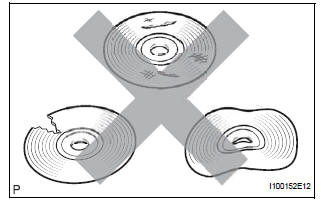

1 CHECK MAP DISC
OK: No deformations or cracks on map disc.
2 CHECK DISPLAY
OK: No other incomplete displays are found.
REPLACE RADIO AND NAVIGATION ASSEMBLY
