Toyota Sienna Service Manual: Oil pump

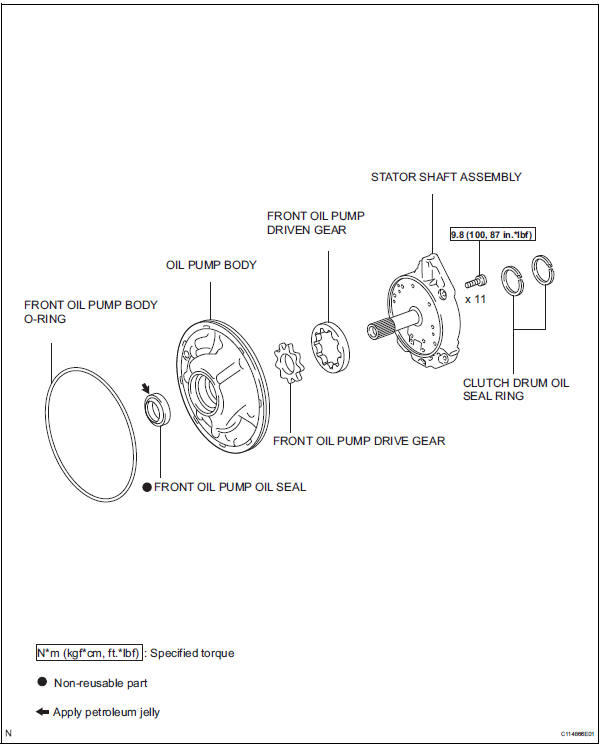

COMPONENTS

Oil pump

Reassembly
1. BEARING POSITION 2. INSTALL DIFFERENTIAL GEAR LUBE APPLY TUBE (a) Install the differential gear lube apply tube and transaxle apply tube clamp with the bolt to the transaxle housing ...

Disassembly
1. INSPECT OIL PUMP ASSEMBLY HINT: (See page AX-234) 2. REMOVE CLUTCH DRUM OIL SEAL RING (a) Remove the 2 clutch drum oil seal rings. 3. REMOVE STATOR SHAFT ASSEMBLY (a) Using a "torx&q ...
