Some audio features can be controlled using the switches on the steering wheel.
Operation may differ depending on the type of audio system or navigation system. For details, refer to the manual provided with the audio system or navigation system.

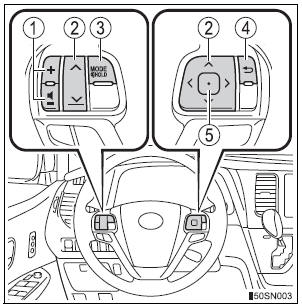

Operating the audio system using the steering wheel switches
Cursor switch (“” and “”)
WARNING To reduce the risk of an accident Exercise care when operating the audio switches on the steering wheel. |
