Toyota Sienna Service Manual: Suspension system

How to proceed with troubleshooting

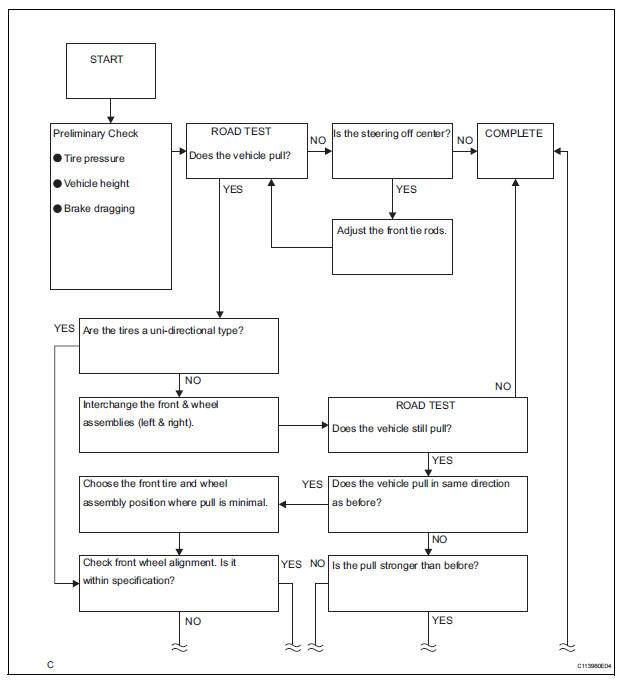

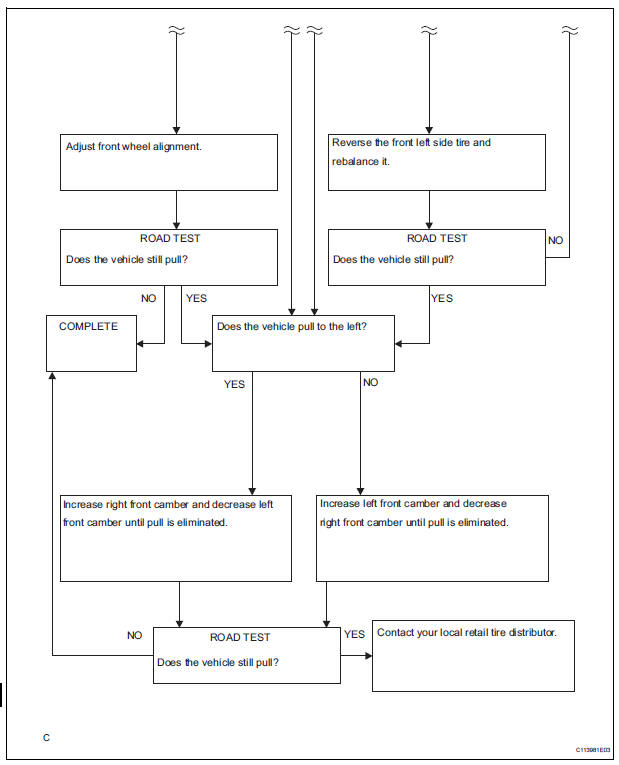

HINT: This is the repair procedure for vehicle pull.

How to proceed with troubleshooting

How to proceed with troubleshooting

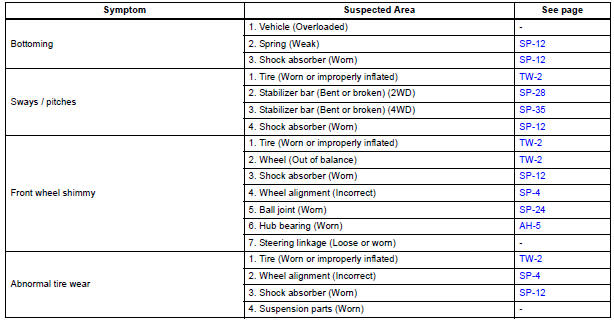

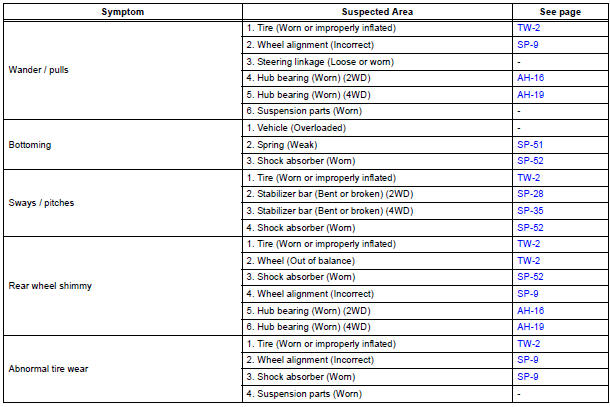

Problem symptoms table

FRONT SUSPENSION SYSTEM

FRONT SUSPENSION SYSTEM

REAR SUSPENSION SYSTEM

REAR SUSPENSION SYSTEM

Suspension
...

Front wheel alignment
Adjustment NOTICE: For vehicles equipped with VSC, if wheel alignment has been adjusted, and if suspension or underbody components have been removed/installed or replaced, be sure to perform the ...
