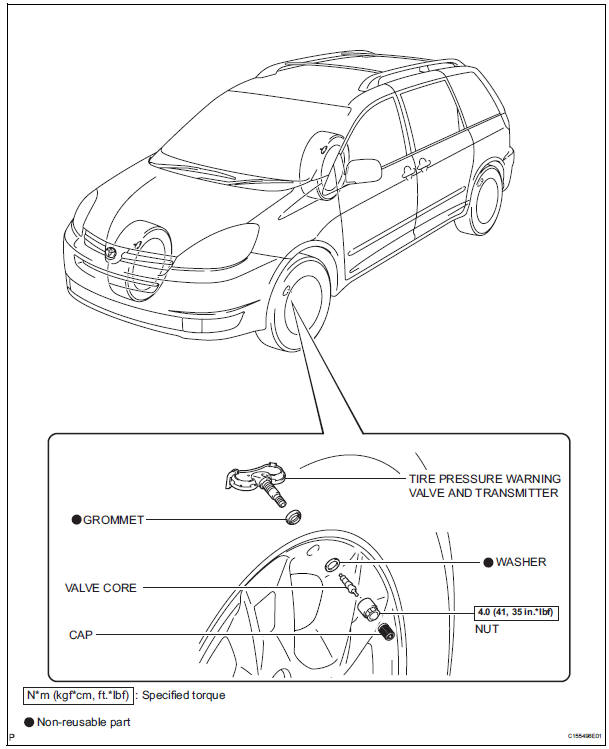

Toyota Sienna Service Manual: Tire pressure warning valve and transmitter

Installation

1. INSTALL TIRE PRESSURE WARNING RECEIVER ASSEMBLY (a) Connect the connector. (b) Install the tire pressure warning receiver assembly with the bolt. Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf) ...

Removal

1. REMOVE FRONT WHEEL 2. REMOVE REAR WHEEL 3. REMOVE TIRE PRESSURE WARNING VALVE AND TRANSMITTER (a) Remove the valve core and cap, and release the air from the tire. (b) After ensuring tha ...

Other materials:

Transmitter ID1 Operation Stop
DESCRIPTION The tire pressure warning valve and transmitters that are installed in the tire and wheel assemblies measure the air pressures of the tires. The measured values are transmitted to the tire pressure warning antenna and receiver on the body as radio waves and then sent to the ti ...

Register transmitter id (using intelligent tester)
(a) Connect the intelligent tester to DLC3 (Procedure "A"). (b) Turn the ignition switch to the ON position (Procedure "B"). (c) Select the REGIST TIRE following the intelligent tester screen (UTILITY - REGIST TIRE) (Procedure "C"). (d) Input the IDs (ID1 t ...

Open in Pump Motor Circuit
DTC C1251/51 Open in Pump Motor Circuit DESCRIPTION The motor relay (semiconductor relay) is housed in the brake actuator assembly and drives the pump motor based on a signal from the skid control ECU. WIRING DIAGRAM Refer to DTCs C0273/13 and C0274/14 (See page BC-31). INSPECTION PROCED ...
