Toyota Sienna Service Manual: DTC check / clear
1. DTC CHECK/CLEAR (USING INTELLIGENT TESTER:)
- DTC check

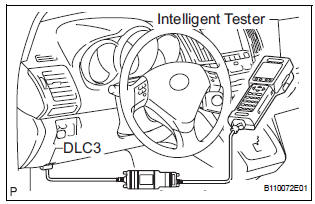

- Connect the intelligent tester to the DLC3.
- Turn the ignition switch to the ON position.
- Read the DTCs on the tester screen.
- DTC clear
- Connect the intelligent tester to the DLC3.
- Turn the ignition switch to the ON position.
- Clear the DTCs following the prompts on the tester screen.
HINT: Refer to the intelligent tester operator's manual for further details
