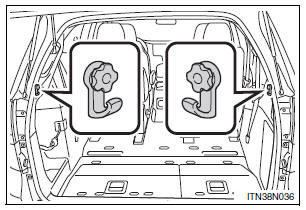

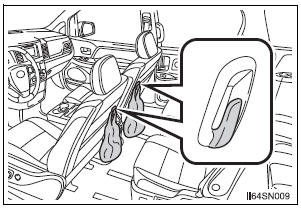

The hooks are designed to hang things like a grocery bag.

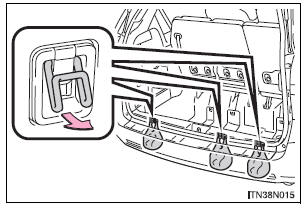

Pull the hook up.
WARNING
Type C: When not in use, keep the grocery bag hook stowed.
Injuries may result in the event of sudden braking, sudden swerving or an accident. |
NOTICE Type A and B: Do not hang any object heavier than 8.8 lb. (4 kg) on the grocery bag hook. |
