Toyota Sienna Service Manual: U151e automatic transaxle

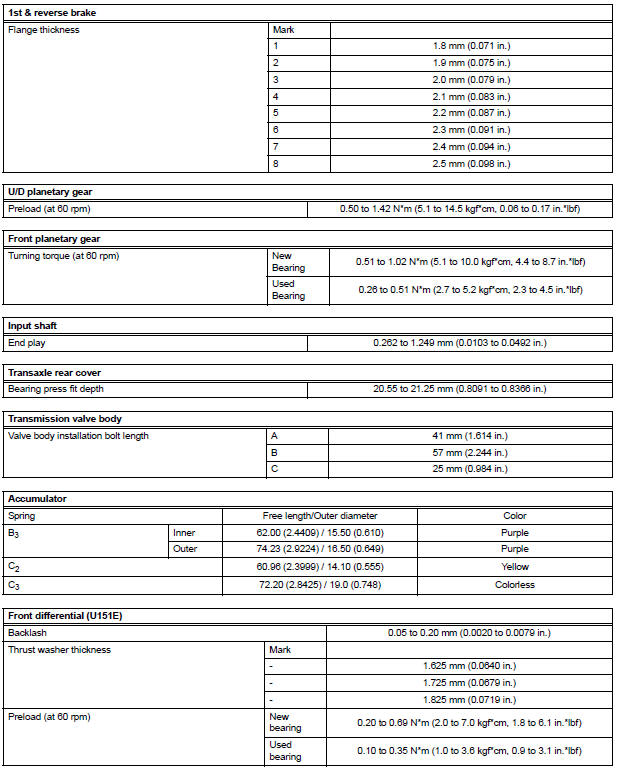

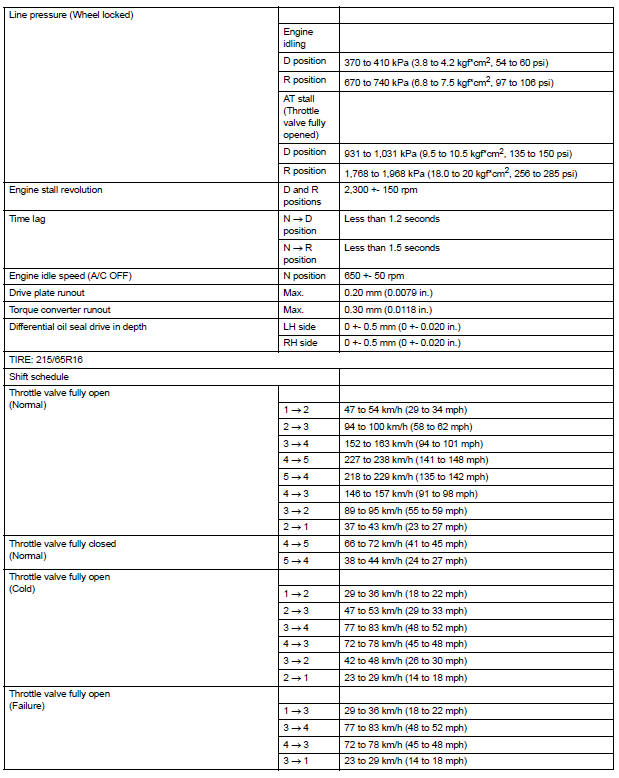

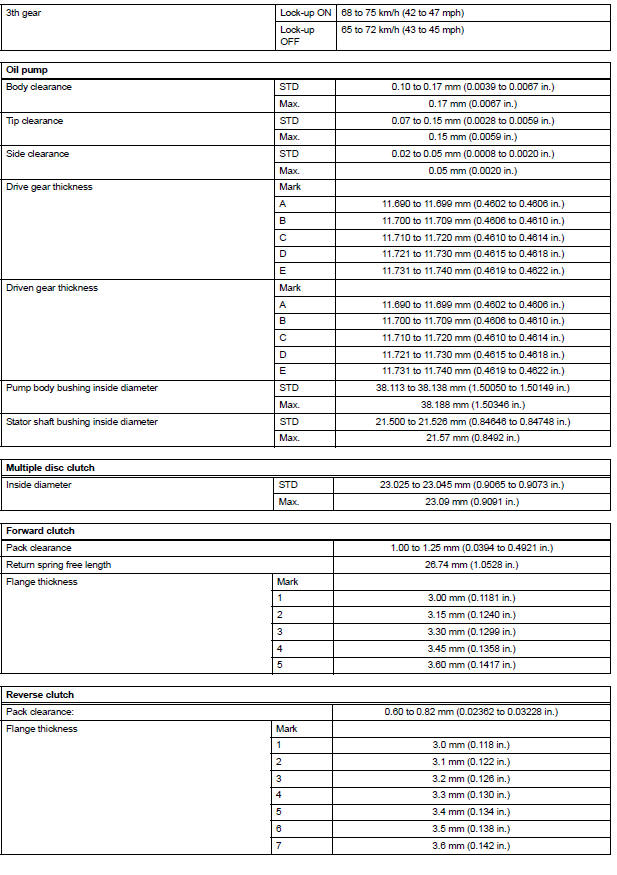

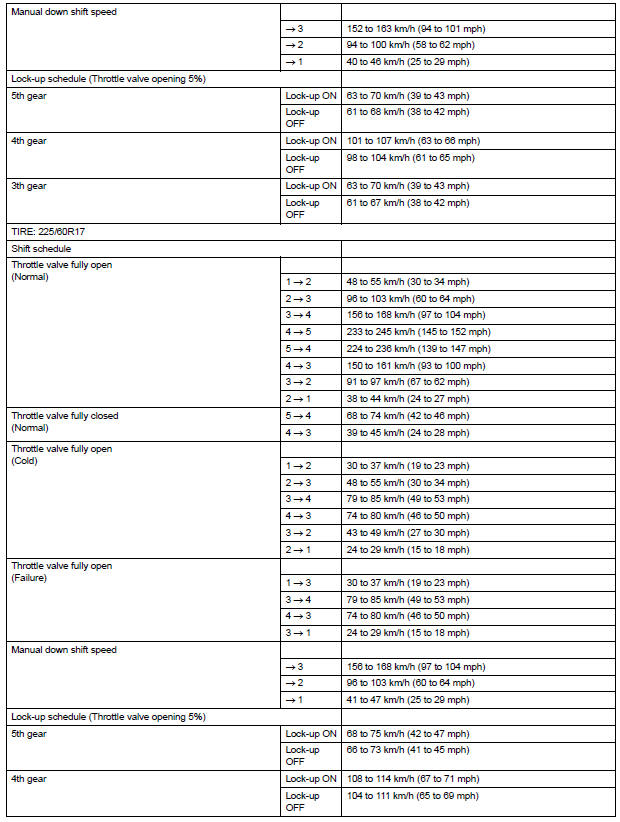

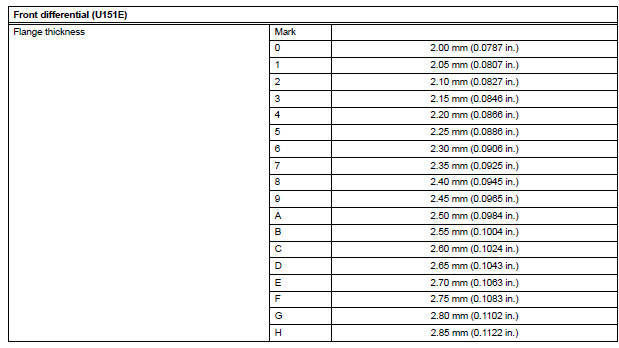

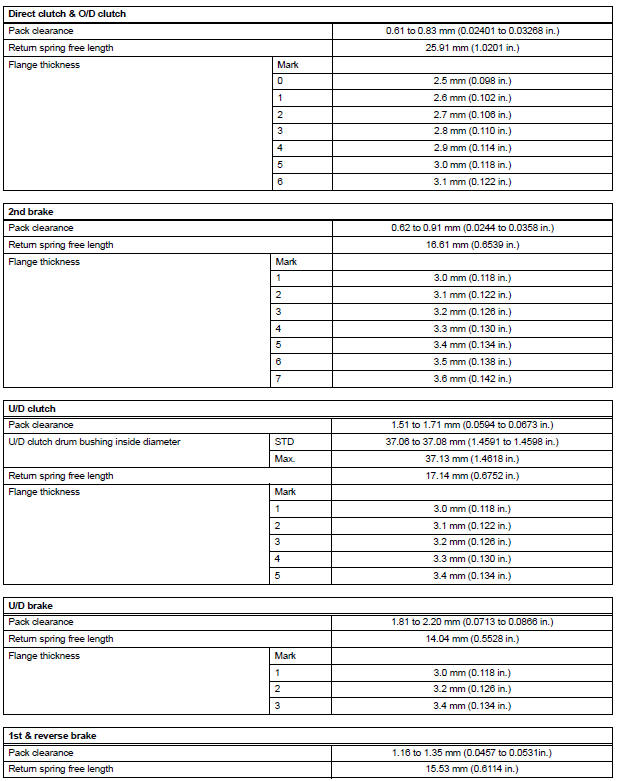

SERVICE DATA

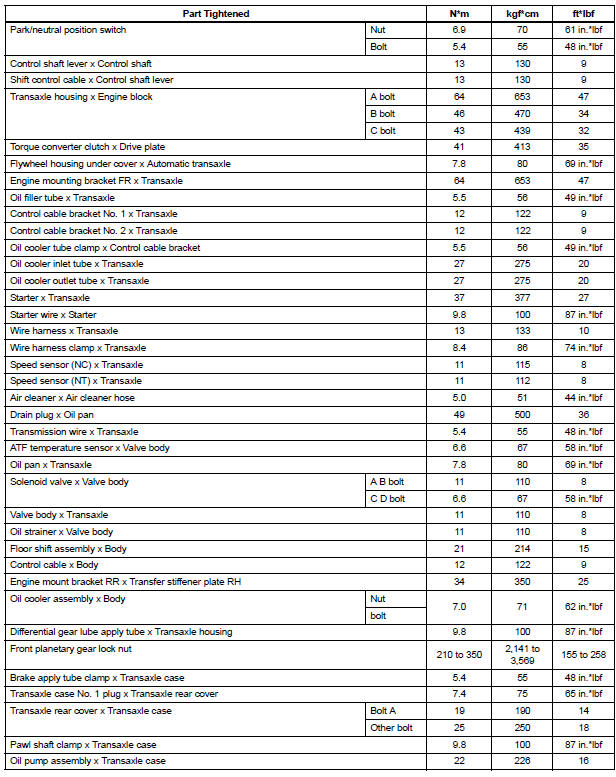

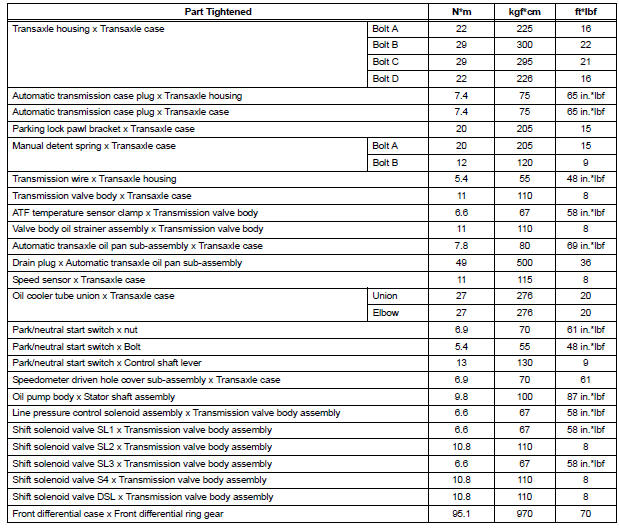

TORQUE SPECIFICATIONS
2Gr-fe engine mechanical
SERVICE DATA
TORQUE SPECIFICATIONS
2GR-FE FUEL
SERVICE DATA
TORQUE SPECIFICATIONS
2GR-FE EMISSION CONTROL
SERVICE DATA
TORQUE SPECIFICATIONS
2GR-FE INTA ...
U151f automatic transaxle
Service data
TORQUE SPECIFICATIONS
...
