Toyota Sienna Service Manual: Back door closer system

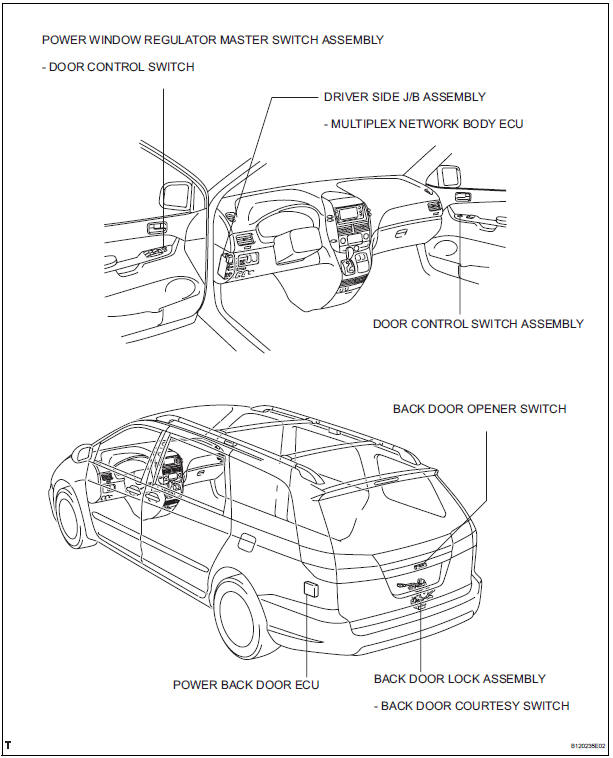

PARTS LOCATION
- How to proceed with troubleshooting
- Initialization
- Terminals of ECU
- Diagnosis system
- DTC check / clear
- Data list / active test
- Diagnostic trouble code chart
Slide Door Closer RH does not Operate
DESCRIPTION
The slide door ECU RH controls the slide door closer. In response to the
signals output from the switches
in the slide door lock, the slide door closer drives the closer motor.
HINT:
...
How to proceed with
troubleshooting
HINT:
Troubleshoot in accordance with the procedures on the
following pages
1 VEHICLE BROUGHT TO WORKSHOP
2 CUSTOMER PROBLEM ANALYSIS CHECK AND SYMPTOM CHECK
3 INSPECT COMMUNICATION FUNCTION OF L ...
