Toyota Sienna Service Manual / Engine / 2Gr-fe fuel / Fuel injector / Components

Components

Removal

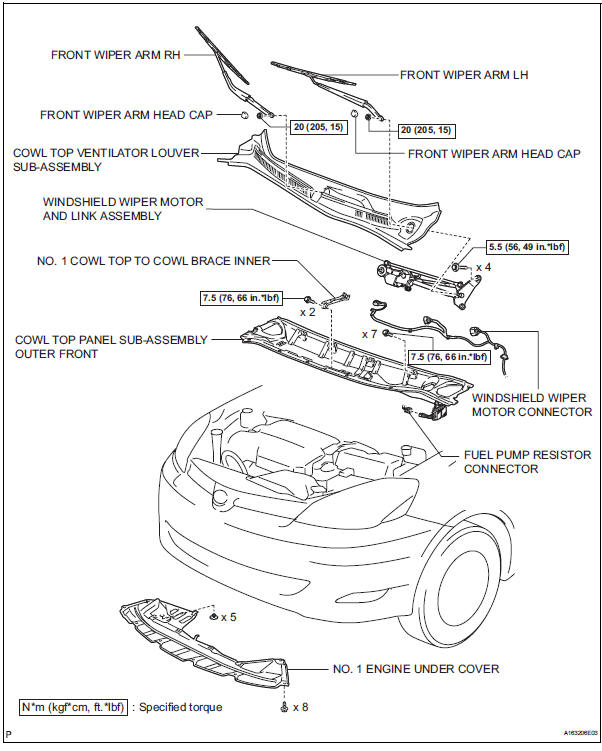

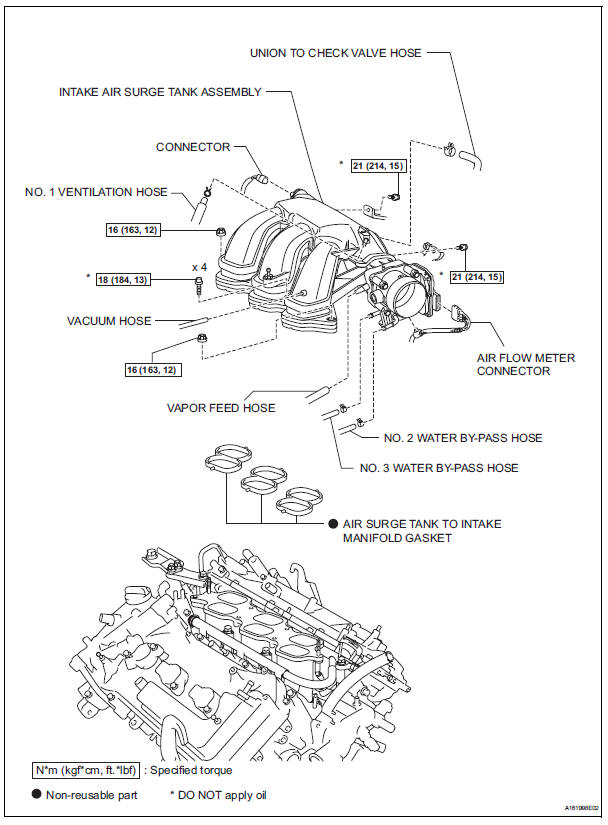

1. DISCHARGE FUEL SYSTEM PRESSURE HINT: See page FU-1. 2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 3. REMOVE NO. 1 ENGINE UNDER COVER 4. DRAIN ENGINE COOLANT (See page CO-6) 5. REMOVE FR ...
