Toyota Sienna Service Manual: Inspection

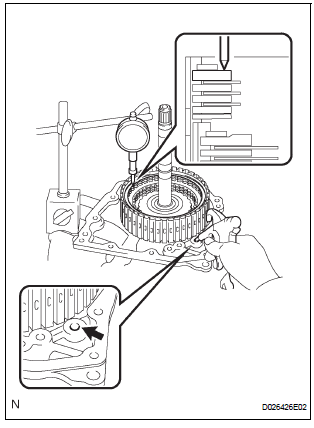

1. Inspect pack clearance of reverse clutch

 Inspect pack clearance of reverse clutch

(A) install the intermediate shaft and needle roller bearing onto the transaxle rear cover.

(B) using a dial indicator, measure the reverse clutch pack clearance while applying and releasing compressed air (392 kpa, 4.0 Kgf/cm2, 57 psi).

Pack clearance: 0.60 To 0.82 Mm (0.02362 To 0.03228 In.)V

If the pack clearance is not as specified, inspect the discs, plates and flange.

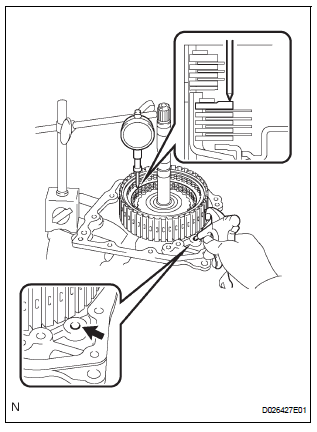

2. Inspect pack clearance of direct clutch and overdrive clutch

 Inspect pack clearance of direct clutch and overdrive clutch

(a) Using a dial indicator, measure the direct clutch and overdrive clutch pack clearance while applying and releasing compressed air (392 kPa, 4.0 kgf/cm2, 57 psi).

Pack clearance: 0.61 to 0.83 mm (0.02401 to 0.03268 in.)

If the pack clearance is not as specified, inspect the discs, plates and flange.

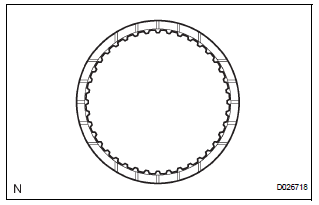

3. INSPECT DIRECT MULTIPLE DISC CLUTCH DISC

INSPECT DIRECT MULTIPLE DISC CLUTCH DISC

(a) Check if the sliding surfaces of the disc, plate and flange are worn or burnt.

If necessary, replace them.

HINT:

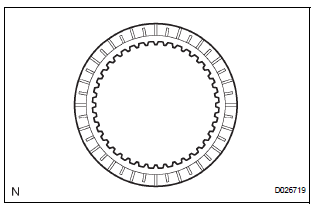

4. INSPECT OVERDRIVE DIRECT CLUTCH DISC

 INSPECT OVERDRIVE DIRECT CLUTCH DISC

(a) Check if the sliding surface of the disc, plate and flange are worn or burnt.

If necessary, replace them.

HINT:

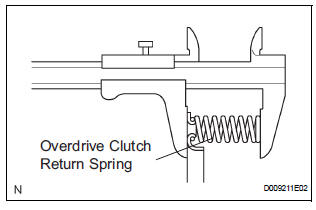

5. INSPECT OVERDRIVE CLUTCH RETURN SPRING SUB-ASSEMBLY

INSPECT OVERDRIVE CLUTCH RETURN SPRING SUB-ASSEMBLY

(a) Using vernier calipers, measure the free length of the spring together with the spring seat.

Standard free length: 25.91 mm (1.0201 in.)

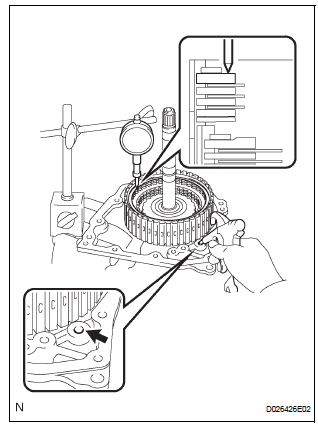

6. INSPECT PACK CLEARANCE OF REVERSE CLUTCH

INSPECT PACK CLEARANCE OF REVERSE CLUTCH

(a) Install the intermediate shaft onto the transaxle rear cover.

(b) Using a dial indicator, measure the direct clutch pack clearance while applying and releasing compressed air (392 kPa, 4.0 kgf/cm2, 57 psi).

Clearance: 0.60 to 0.82 mm (0.02362 to 0.03228 in.)

If the pack clearance is less than the minimum, parts may have been assembled incorrectly, so check and reassemble again. If the clearance is not as specified, select another flange.

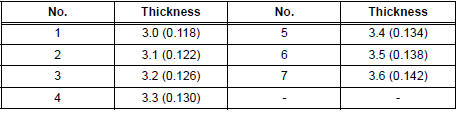

HINT: There are 7 flanges of different thickness.

Flange thickness: mm (in.)

7. INSPECT PACK CLEARANCE OF DIRECT CLUTCH AND OVERDRIVE CLUTCH

(a) Using a dial indicator, measure the direct clutch & overdrive clutch pack clearance while applying and releasing compressed air (392 kPa, 4.0 kgf/cm2, 57 psi).

psi).

Clearance: 0.61 to 0.83 mm (0.02401 to 0.03268 in.)

If the pack clearance is less than the minimum, parts may have been assembled incorrectly, so check and reassemble again. If the clearance is not as specified, select another flange.

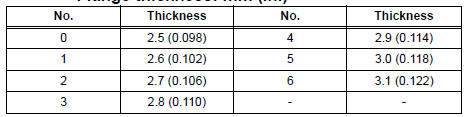

HINT: There are 7different thicknesses of flanges available

Flange thickness: mm (in.)

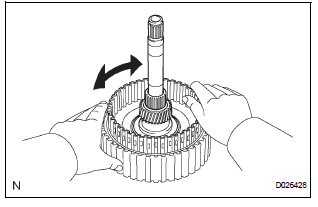

(b) Check that the disc rotates when rotating the disc after inserting the rear planetary sun gear.

INSPECT PACK CLEARANCE OF DIRECT CLUTCH AND OVERDRIVE CLUTCH

NOTICE: Do not place the rear planetary sun gear in a vise.
