Toyota Sienna 2010-2024 Owners Manual: Installing the second seats
Installing the second outside seats
- Align the marking on the seat side cover to the marking on the rail cover and align the marking on the seat front/back cover to the rail.
- Tip-up seat
- Ottoman seat

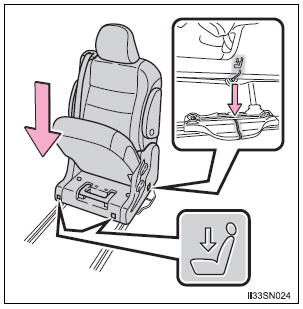

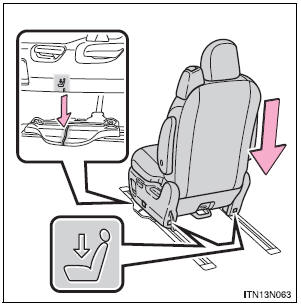

- Lower the seat and engage the latches.
If you locked the seat latches unintentionally before installing securely, pull the release lever to unlock the latches.
Make sure the seat is locked in place by trying to shake the seatback and lift up the seat cushion.
Installing the second center seats (if equipped)

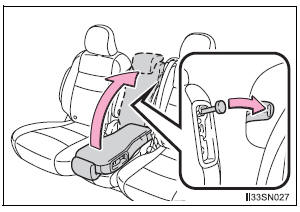

- Engage the rear pins with the hooks.
- Unfold the cushion leg and push down on the seat to engage the front lock.
- Unfold the seatback and lock
it.
Make sure the seat is locked in place by trying to shake the seatback and lift up the seat cushion.
Removing the second seats
Removing the second outside seats (Tip-up seats)
Pull the armrests up.
Pull the seatback adjustment
lever and fold down the seatback.
The cushion will tip up.
Slide the seat fo ...
Folding down the third seats (manual seats)
Before folding the third seats
Fold the outside head
restraints and lower the center
head restraint to the lowest
position , and
stow the seat belt buckles.
Stow the center seat ...
