Toyota Sienna 2010-2024 Owners Manual: Personal/interior lights
Front
Turns the light on/off
Rear
Turns the light on/off
When the personal/interior light main switch is in the off position, the rear personal lights will not turn on even if the switch is on.
- Type A
- Type B
Personal/interior light
main switch
Turns the lights on
Turns the door position on
Turns the lights off
...

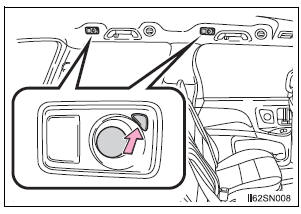

Rear ceiling lights
Turns the lights on/off
When the personal/interior light
main switch is in the off position,
the rear ceiling lights will not turn
on even if the switch is on.
Adjusting the rear personal/int ...
