Toyota Sienna 2010-2025 Owners Manual: Power outlets

The power outlet can be used for the following components: 12 V: Accessories that run on less than 10 A 120 V AC: Accessories that use less than 100 W

12 V

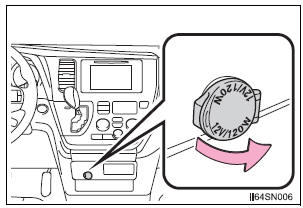

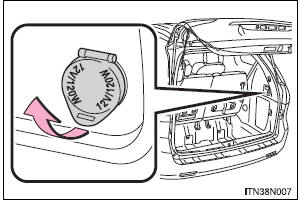

Open the cover.

Toyota Sienna. Power outlets


Toyota Sienna. Power outlets


Toyota Sienna. Power outlets


120 V AC (if equipped)

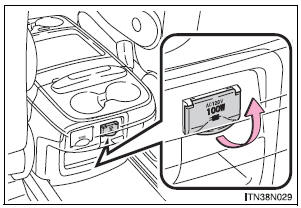

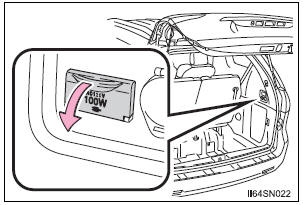

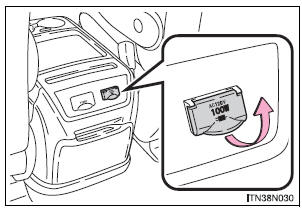

Open the cover.

Toyota Sienna. 120 V AC


Toyota Sienna. 120 V AC


Toyota Sienna. 120 V AC


The power outlet can be used when

NOTICE

To avoid damaging the power outlet

Close the power outlet lid when the power outlet is not in use.

Foreign objects or liquids that enter the power outlet may cause a short circuit.

To prevent blown fuse

  • 12 V
    Do not use an accessory that uses more than 12 V 10 A.
  • 120 V AC
    Do not use a 120 V AC appliance that requires more than 100 W.

    If a 120 V AC appliance that consumes more than 100 W is used, the protection circuit may cut the power supply.

To prevent battery discharge

Do not use the power outlet longer than necessary when the engine is not running.

Appliances that may not operate properly (120 V AC)

The following 120 V AC appliances may not operate properly even if their power consumption is under 100 W:

  • Appliances with high initial peak wattage
  • Measuring devices that process precise data
  • Other appliances that require an extremely stable power supply
