Toyota Sienna Service Manual: Problem symptoms table

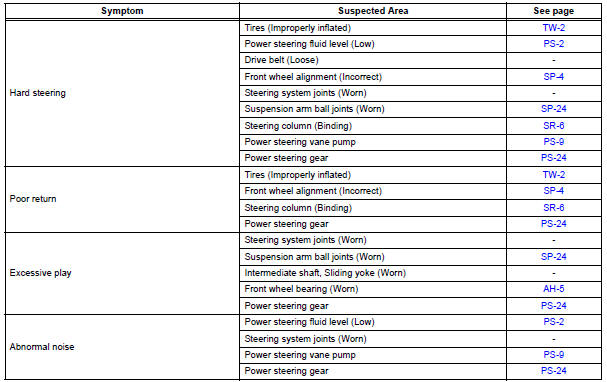

HINT: Use the table below to help determine the cause of the problem. Likely causes of the problem are indicated in descending order. Check each suspected area in order.
Repair or replace the faulty parts or perform adjustments as necessary.
POWER STEERING SYSTEM
Precaution
1. Handling precautions on steering system
(a) Care must be taken when replacing parts. Incorrect
replacement could affect the performance of the
steering system and result in a driving hazard.
2. ...
On-vehicle inspection
1. INSPECT DRIVE BELT
(a) Visually check the drive belt for excessive wear,
frayed cords, etc.
If any defect is found, replace the drive belt.
HINT:
Cracks on the rib side of a belt are con ...
