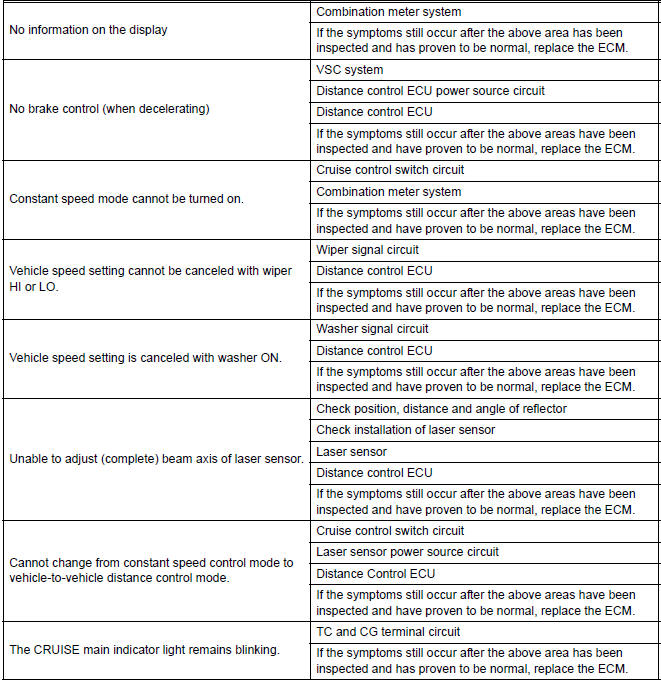

Toyota Sienna Service Manual: Problem symptoms table
HINT:
- Use the table below to help determine the cause of the problem symptom. The likely causes of the problem are indicated in descending order. Check each suspected area in order. Repair or replace faulty parts or perform adjustments as necessary.
- Inspect the fuse and relay related to this system before inspecting the suspected areas below.
Dynamic Laser Cruise Control System:
Operation check
1. INPUT SIGNAL CHECK
Connect the intelligent tester to the DLC3.
Check the cruise control main switch using the
DATA LIST function in the intelligent tester (ONOFF,
CANCEL, ...
Terminals of ECU
1. CHECK DISTANCE CONTROL ECU
Reference: waveform 1
HINT:
Terminal: LRDD - SGND
Gauge set: 2 V/DIV., 10 ms./DIV.
Condition: ignition switch in the ON posit ...
