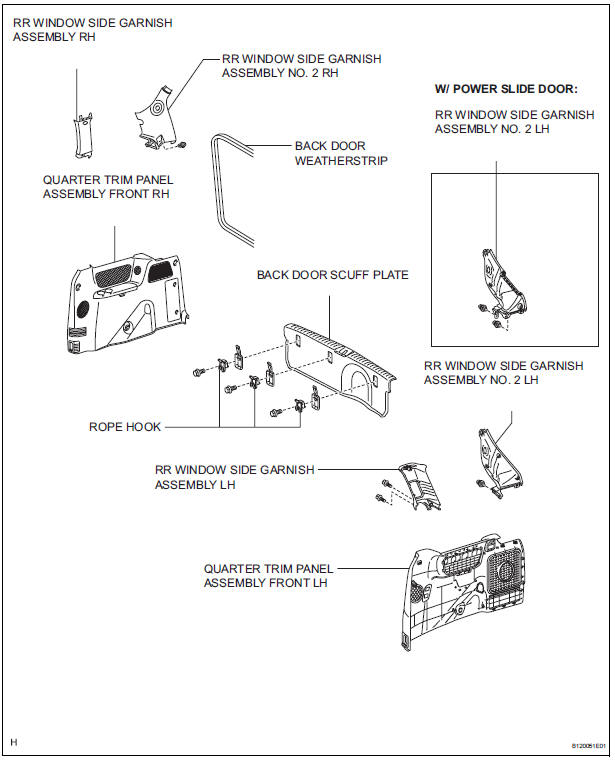

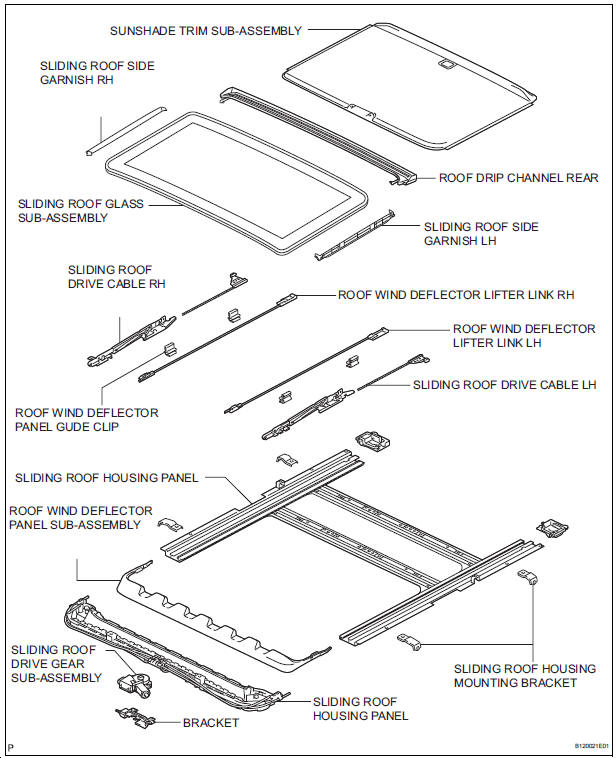

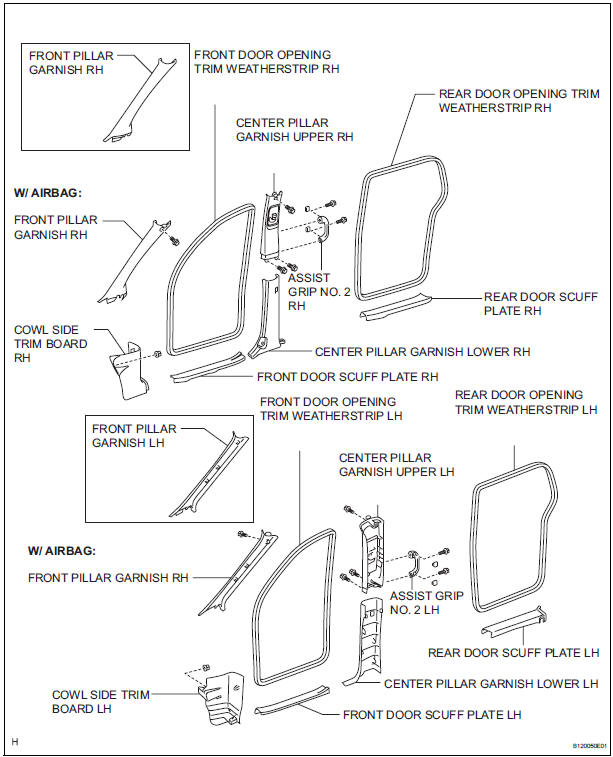

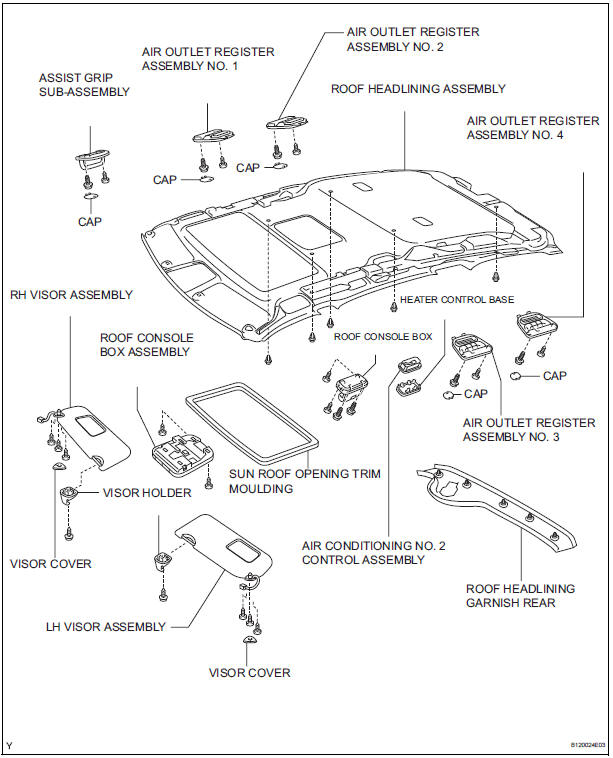

COMPONENTS

COMPONENTS

COMPONENTS

COMPONENTS

COMPONENTS

On-vehicle inspection
1. CHECK AUTO SLIDE-OPEN / CLOSE FUNCTION Check that the sliding roof switch can operate the sliding roof glass as follows while the tilt-up / DOWN function is not operating. Standard HI ...

Removal
1. REMOVE ROOF HEADLINING ASSEMBLY 2. REMOVE SLIDING ROOF SIDE GARNISH LH Disengage the 3 claws. Disengage the rear clip. Disengage the front clip. Remove the slide garnish by pulling i ...
