Toyota Sienna Service Manual: Transmitter battery
REPLACEMENT
1. REMOVE TRANSMITTER BATTERY
NOTICE: Special caution should be taken for handling each component as they are precision electronic components.

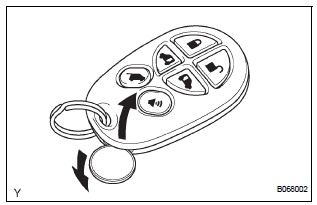

- Using a coin or the equivalent, pry out the transmitter case.
NOTICE: Do not forcibly pry out the case.

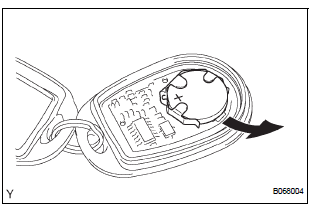

- Remove the battery (lithium battery).
NOTICE:
- Do not push the terminals with your finger.
- Prying up the battery (lithium battery) to forcibly remove it will cause deformation of the terminals.
- Do not touch the battery with wet hands.
Water may cause unexpected rust.
- Do not touch or move any components inside the transmitter, or it may interfere with the proper operation.
2. INSTALL TRANSMITTER BATTERY

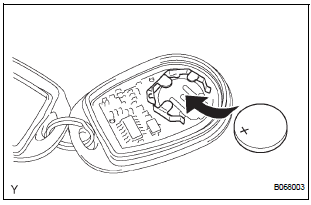

- Install a new battery (lithium battery) with the positive (+) side up, as shown in the illustration.
NOTICE:
- Be sure that the positive side and the negative side of the transmitter battery are faced correctly.
- Be careful not to bend the electrode of the transmitter battery insertion.
- Be careful that no dust or oil adheres to the transmitter case.
- Install the case securely.
Unlock Warning Switch Circuit
DESCRIPTION
The unlock warning switch detects if the key is in the ignition key cylinder.
The unlock warning switch turns on when the key is inserted into the ignition
key cylinder and turns off ...
Door control transmitter
INSPECTION
1. INSPECT DOOR CONTROL TRANSMITTER
Inspect operation of the transmitter.
Remove the battery (lithium battery) from the transmitter.
Install a new or norm ...
