Toyota Sienna Service Manual: Knock sensor

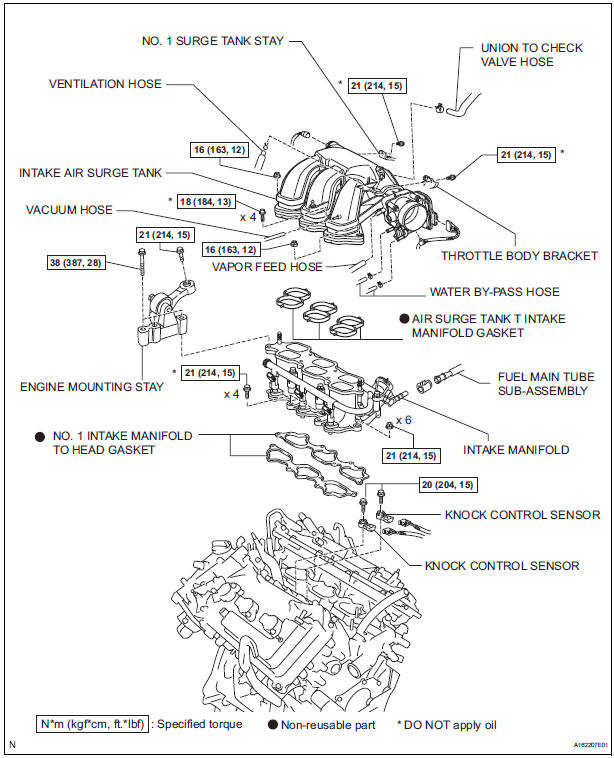

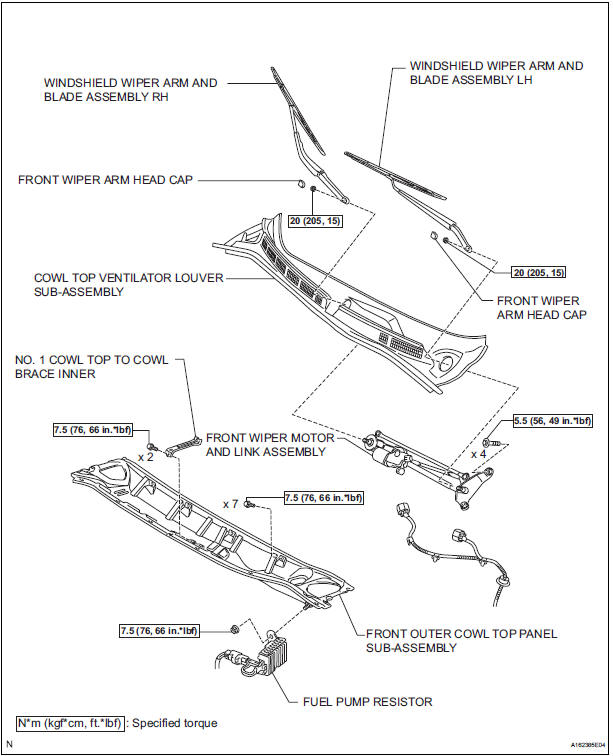

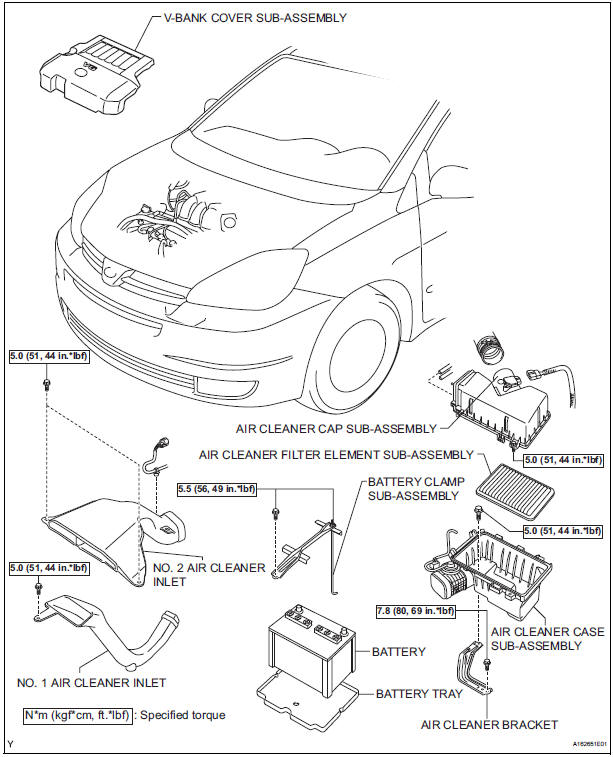

COMPONENTS

COMPONENTS

COMPONENTS

COMPONENTS

Installation
1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR  Install the engine coolant temperature sensor. Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)  Connect the engine coolant temperature senso ...

Removal
1. DISCHARGE FUEL SYSTEM PRESSURE 2. REMOVE V-BANK COVER SUB-ASSEMBLY 3. DRAIN ENGINE COOLANT 4. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY 5. REMOVE FRONT OUTER COWL TOP PANEL SUBASSEMBLY 6. REMOVE ...
