Toyota Sienna Service Manual: On-vehicle inspection

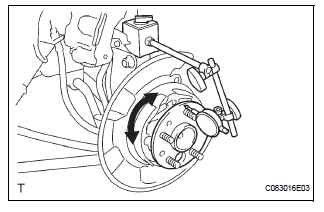

1. INSPECT REAR AXLE HUB BEARING BACKLASH

INSPECT REAR AXLE HUB BEARING BACKLASH

(a) Using a dial gauge, check for backlash near the center of the axle hub.

Maximum: 0.05 mm (0.0020 in.)

If backlash exceeds the maximum, replace the axle hub assembly.

NOTICE: Ensure that the dial gauge is set at right angles to the measurement surface.

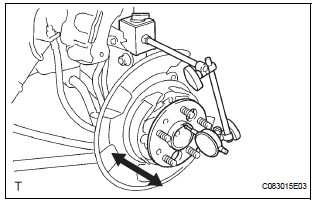

2. INSPECT REAR AXLE HUB BEARING DEVIATION

(a) Using a dial gauge, check for deviation in the surface of the axle hub outside the hub bolt.

INSPECT REAR AXLE HUB BEARING DEVIATION

Maximum: 0.07 mm (0.0027 in.)

If backlash exceeds the maximum, replace the axle hub assembly.

NOTICE: Ensure that the dial gauge is set at right angles to the measurement surface.

Rear axle hub and bearing (for 2wd)
COMPONENTS ...

Removal
HINT: Replace the RH side by the same procedures as the LH side. 1. REMOVE REAR WHEEL 2. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH (a) Removing the 2 bolts, separate the rear disc brake caliper ...
