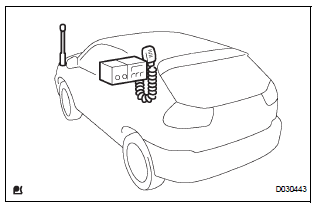

FOR VEHICLES EQUIPPED WITH MOBILE COMMUNICATION SYSTEMS FOR VEHICLES EQUIPPED WITH MOBILE COMMUNICATION SYSTEMS

(a) Install the antenna far away from the ECU and sensors of the vehicle electronic systems as possible.

(b) Install an antenna feeder at least 20 cm (7.87 in.) away from the ECU and sensors of the vehicle electronic systems. For details about ECU and sensors locations, refer to the section on the applicable components.

(c) Keep the antenna and feeder separate from other wirings as much as possible. This will prevent signals sent from the communication equipment from affecting vehicle equipment and vice-versa.

(d) Check that the antenna and feeder are correctly adjusted.

(e) Do not install any high-powered mobile communication system.

Handling of hose clamps
HANDLING OF HOSE CLAMPS (a) Before removing the hose, check the clamp position so that it can be reinstalled in the same position. (b) Replace any deformed or dented clamps with new ones. ...

When servicing full-time 4wd vehicles
The full-time 4WD SIENNA is equipped with the open center differential system. If incorrect preparations or test procedures are used, the test will not only be unsuccessful, but may be dangerous ...
