Toyota Sienna Service Manual: Front shock absorber with coil spring

Toyota Sienna Service Manual / Suspension / Front shock absorber with coil spring

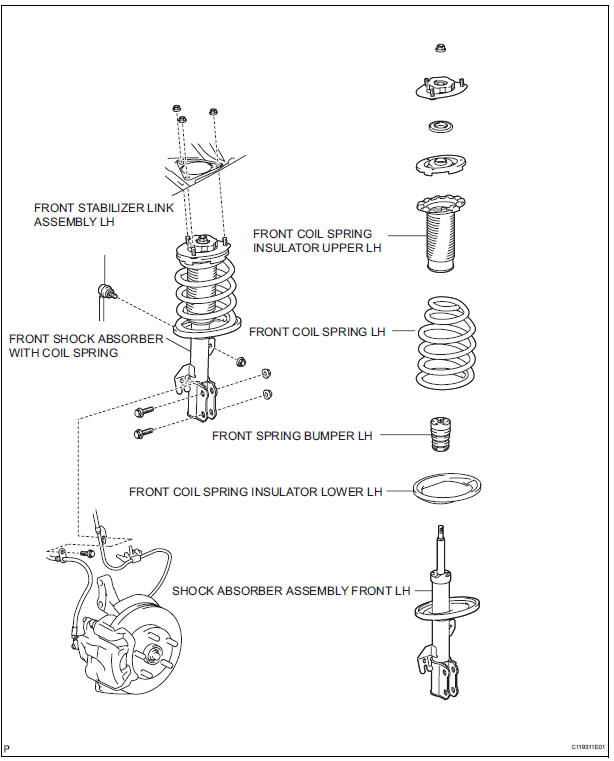

COMPONENTS

Front shock absorber with coil spring

Front shock absorber with coil spring

Rear wheel alignment
ADJUSTMENT NOTICE: For vehicles equipped with VSC, if wheel alignment has been adjusted, and if suspension or underbody components have been removed/installed or replaced, be sure to perform the ...

Removal

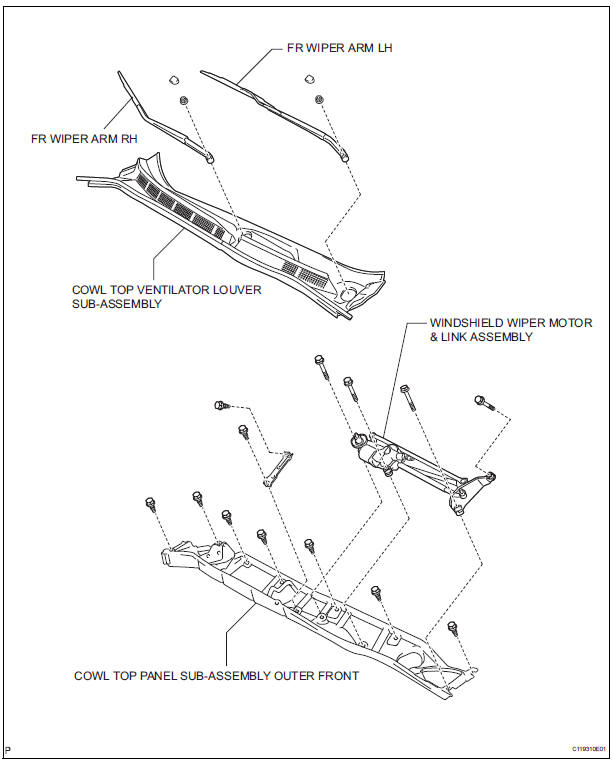

1. Remove front wheel 2. Remove front wiper arm head cap Hint: (see page ww-3) 3. Remove fr wiper arm rh HINT: (See page WW-3) 4. Remove fr wiper arm lh HINT: (See page WW-3) 5. Remove cowl ...

Other materials:

Disassembly
1. INSPECT PACK CLEARANCE OF FORWARD CLUTCH HINT: (See page AX-242) 2. REMOVE FORWARD MULTIPLE DISC CLUTCH DISC (a) Using a screwdriver, remove the snap ring. (b) Remove the flange, 5 discs and 5 plates from the input shaft assembly. 3. REMOVE FORWARD CLUTCH RETURN SPRING SUB-ASSEMB ...

Removal
1. REMOVE FRONT WHEELS 2. REMOVE FRONT STABILIZER LINK ASSEMBLY LH (a) Remove the 2 nuts and front stabilizer link assembly LH. HINT: If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud. 3. REMOVE FRONT STABILIZER LINK ASSEMBLY RH HINT: Remove the ...

Intake Air Temperature Circuit/ Intake Air Temperature Circuit Low Input/ Intake Air Temperature Circuit High Input
DTC P0110 Intake Air Temperature Circuit DTC P0112 Intake Air Temperature Circuit Low Input DTC P0113 Intake Air Temperature Circuit High Input DESCRIPTION The Intake Air Temperature (IAT) sensor, mounted on the Mass Air Flow (MAF) meter, monitors the IAT. The IAT sensor has a built-in ther ...
