Toyota Sienna Service Manual: Diagnostic trouble code chart
1. DTCS FOR AIRBAG SYSTEM
If a malfunction code is displayed during the DTC check, check the circuit listed for the code in the table below (Proceed to the page listed for that circuit).
HINT:
- When the SRS warning light remains on and the DTC output is the normal system code, a voltage source drop is likely to occur. This malfunction is not stored in memory by the center airbag sensor assembly. If the warning light will automatically go off.
- When 2 or more codes are indicated, the code with the lower number appears first.
- If a code is not listed on the display chart, the center airbag sensor assembly may have failed.
- In the case of any malfunction concerning an open circuit, short to ground, or short to B+ due to a squib, other trouble codes may not be detected. In this case, repair the malfunction currently indicated and then perform malfunction diagnosis again.
- When DTC B1150/23 is detected as a result of troubleshooting for the Airbag System, perform troubleshooting for the Occupant Classification System as shown in the chart below.
- Mark in the check mode column:
*1: DTC is not corresponding to the check mode.
*2: DTC is corresponding to the check mode. - DTC which has the mark of the *3 is output only the equipped car of side airbag.
AIRBAG SYSTEM

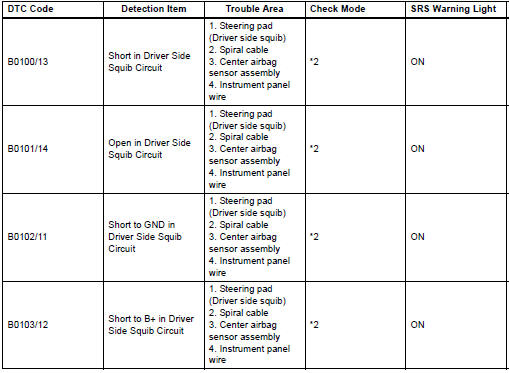

- Short in Driver Side Squib Circuit
- Open in Driver Side Squib Circuit
- Short to GND in Driver Side Squib Circuit
- Short to B+ in Driver Side Squib Circuit

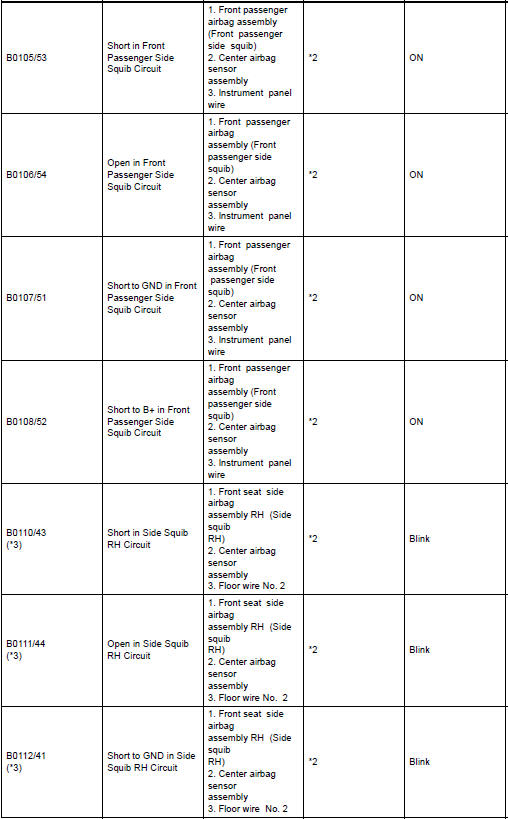

- Short in Front Passenger Side Squib Circuit
- Open in Front Passenger Side Squib Circuit
- Short to GND in Front Passenger Side Squib Circuit
- Short to B+ in Front Passenger Side Squib Circuit
- Short in Side Squib RH Circuit
- Open in Side Squib RH Circuit
- Short to GND in Side Squib RH Circuit
- USE SIMULATION METHOD TO CHECK
- Short in Side Squib LH Circuit
- Open in Side Squib LH Circuit
- Short to GND in Side Squib LH Circuit
- Short to B+ in Side Squib LH Circuit
- Seat Belt Buckle Switch LH Circuit Malfunction
- Short in Front Pretensioner Squib RH Circuit
- Open in Front Pretensioner Squib RH Circuit
- Short to GND in Front Pretensioner Squib RH Circuit
- Short to B+ in Front Pretensioner Squib RH Circuit
- Short in Front Pretensioner Squib LH Circuit
- Open in Front Pretensioner Squib LH Circuit
- Short to GND in Front Pretensioner Squib LH Circuit
- Short to B+ in Front Pretensioner Squib LH Circuit
- Center Airbag Sensor Assembly Malfunction
- Half Connection in Center Airbag Sensor Assembly Connectors
- Side Airbag Sensor Assembly RH Circuit Malfunction
- Side Airbag Sensor Assembly LH Circuit Malfunction
- Front Airbag Sensor RH Circuit Malfunction
- Front Airbag Sensor LH Circuit Malfunction
- Occupant Classification System Malfunction
- Passenger Airbag ON/OFF Indicator Circuit Malfunction
- Seat Position Airbag Sensor Circuit Malfunction

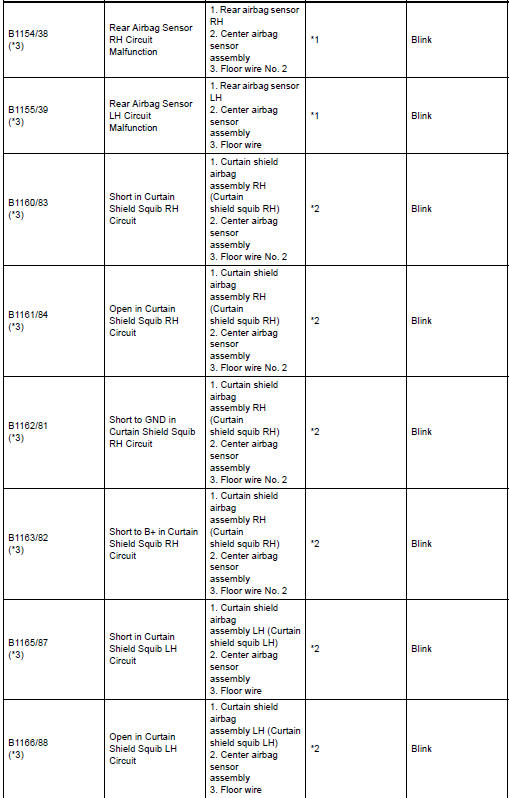

- Rear Airbag Sensor RH Circuit Malfunction
- Rear Airbag Sensor LH Circuit Malfunction
- Short in Curtain Shield Squib RH Circuit
- Open in Curtain Shield Squib RH Circuit
- Short to GND in Curtain Shield Squib RH Circuit
- Short to B+ in Curtain Shield Squib RH Circuit
- Short in Curtain Shield Squib LH Circuit
- Open in Curtain Shield Squib LH Circuit

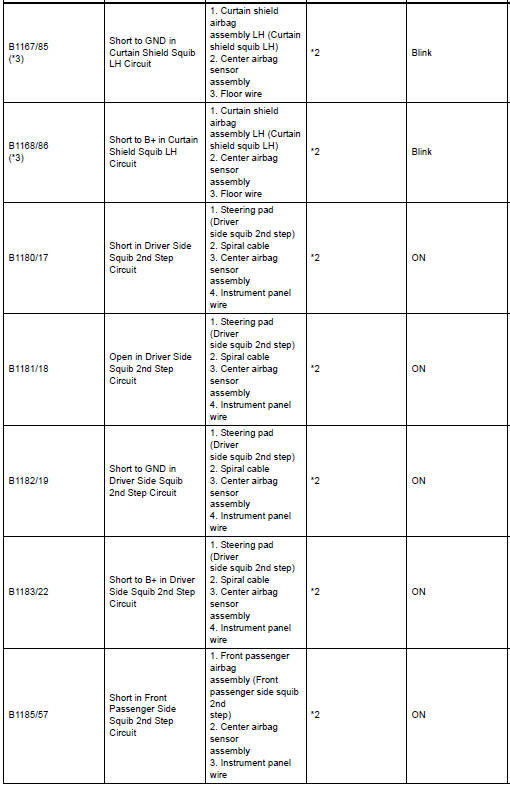

- Short to GND in Curtain Shield Squib LH Circuit
- Short to B+ in Curtain Shield Squib LH Circuit
- Short in Driver Side Squib 2nd Step Circuit
- Open in Driver Side Squib 2nd Step Circuit
- Short to GND in Driver Side Squib 2nd Step Circuit
- Short to B+ in Driver Side Squib 2nd Step Circuit
- Short in Front Passenger Side Squib 2nd Step Circuit
- Open in Front Passenger Side Squib 2nd Step Circuit
- Short to GND in Front Passenger Side Squib 2nd Step Circuit
- Short to B+ in Front Passenger Side Squib 2nd Step Circuit
- Short in Rear Curtain Shield Squib RH Circuit
- Short in Rear Curtain Shield Squib RH Circuit
- Open in Rear Curtain Shield Squib RH Circuit
- Short to GND in Rear Curtain Shield Squib RH Circuit

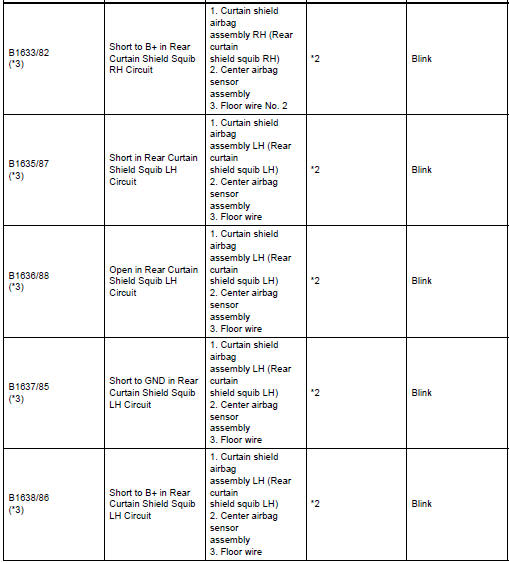

- Short to B+ in Rear Curtain Shield Squib RH Circuit
- Short in Rear Curtain Shield Squib LH Circuit
- Open in Rear Curtain Shield Squib LH Circuit
- Short to GND in Rear Curtain Shield Squib LH Circuit
- Short to B+ in Rear Curtain Shield Squib LH Circuit
- SRS Warning Light Remains ON
- SRS Warning Light does not Come ON
- Diagnosis Circuit
Data list / active test
HINT:
By accessing the DATA LIST displayed on the intelligent
tester, you can perform such functions as reading the values
of switches and sensors without removing any parts. Reading
the DATA LIST ...
